agileDAC 12
The agileDAC 12-bit digital-to-analog converter is a segmented current steering DAC. It has a nominal 12-bit resolution at sample rates up to 20 Msps and a synchronous digital data input interface, supports single-ended or differential output and includes an analog test port.
Agile Analog designs are based on tried and tested architectures to ensure reliability and functionality. Our design methodology is programmatic, systematic and repeatable leading to analog IP that is more verifiable, more robust and more reliable. Our methodology also allows us to quickly re-target our IP to different process options. We support all the major foundries including TSMC, GlobalFoundries, Intel Foundry, Samsung Foundry, UMC and Other Foundries.
Resolution: 12bits (Typical) • Sampling rate (Fs): Up to 20 Msps (Typical) • Input signal bandwidth: Fs/2 • ENOB: 11bits (Typical)
INL: 1.5 LSB • DNL: 1.5 LSB • Monotonic and no missing codes • Optional output buffer • Silicon area 0.0510mm2 in 22nm technology
Low DNL/INL • Differential output • Low layout dependency • Ease of use

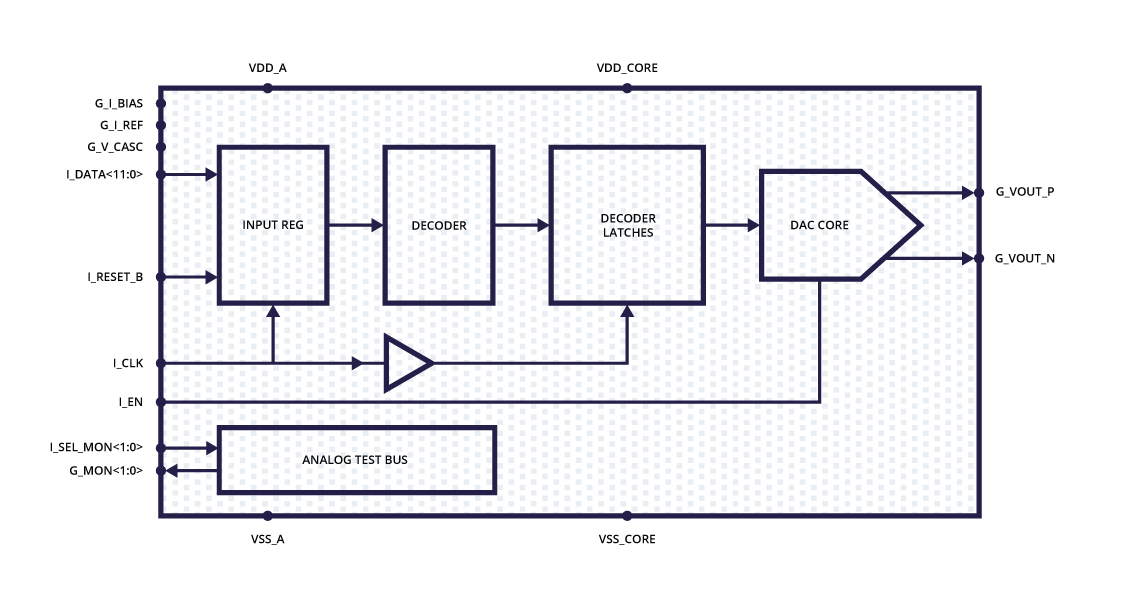

Block Diagram | 12-bit Digital-to-Analog Converter | agileDAC 12
